AERO SERIES · RTA-11
FIELD-READY 2026
AERO SERIES · LIVE-LINE INSTALLATION

AeroClip (RTA-11)

Live-line device installation by drone, flown from the ground. The RTA-11 airframe and AeroClip payload install bird diverters and powerline markers on energised conductors, with the line still live. No outage, no climbers, no helicopter.

MAX PAYLOAD
3.5 kg
MTOW
7 kg
ENDURANCE
8–25 min
AUTONOMY
AirAware Edge
Request a quote Custom payload integration →
RTK FIX · CM HOLDENERGISED · NO OUTAGEARDUPILOT CORESCENIC RIM · QLD · AUSTRALIAratsstech.com.au
Built here, for work that had no tool

Fully autonomous, with a pilot in the loop.

The aircraft maps the span, finds the conductor, flies the approach, docks, installs, withdraws and returns. The pilot supervises and fine-corrects alignment — which is the honest description and also the harder engineering problem.

01
Map
02
Detect
03
Approach
04
Dock
05
Install
06
Exit
07
Return
PILOT: SUPERVISINGALIGNMENT: FINE-CORRECTCONDUCTOR: ENERGISEDOUTAGE: NOT REQUIRED

The job it replaces

Fitting a diverter to a conductor traditionally means one of three things: take an outage and send a climber, mobilise a helicopter crew, or leave the line unmarked. All three are expensive, and two of them put people next to energised steel.

AeroClip removes the choice. The drone flies the span, docks on the conductor, sets the device and withdraws — with the line still energised, no switching request, and a crew of two working span to span.

No outages, no climbers, no helicopter crews.

Two sizes

AeroClip S on the compact RTA-8 S airframe, no prop guards
RTA-8 S AIRFRAME
AeroClip S

The compact configuration on the smaller RTA-8 S airframe. No prop guards, lighter aircraft.

AeroClip live-line installation drone on the RTA-11 airframe, with prop guards
RTA-11 AIRFRAME
AeroClip

The current flagship, on the RTA-11 industrial airframe. Prop guards and enhanced autonomy.

Specifications
SystemRTA-11 airframe + AeroClip payload
OperationLive-line, energised conductors
AutonomyMap → detect → approach → dock → install → exit → return
Pilot roleSupervises, fine-corrects alignment
Endurance8–25 min, continuous via land-and-swap
ArchitectureOpen, ArduPilot-based
OriginDesigned and built in the Scenic Rim, QLD
Live-line test data under formal validation — figures released when the report lands.
Request a quote
RTA-11 airframe in flight, no payload fitted
AIRFRAME ONLY

The RTA-11 airframe on its own.

The airframe under AeroClip is also supplied on its own. Open ArduPilot architecture, RTK centimetre positioning, guarded rotors and an integrated payload deck, ready for a sensor, a manipulator or a payload we design with you.

Brief us on what it needs to carry and we will tell you whether the RTA-11 or the larger RTA-15 AeroTank is the right frame.

AeroClip on the RTA-11 airframe, studio view from the other side

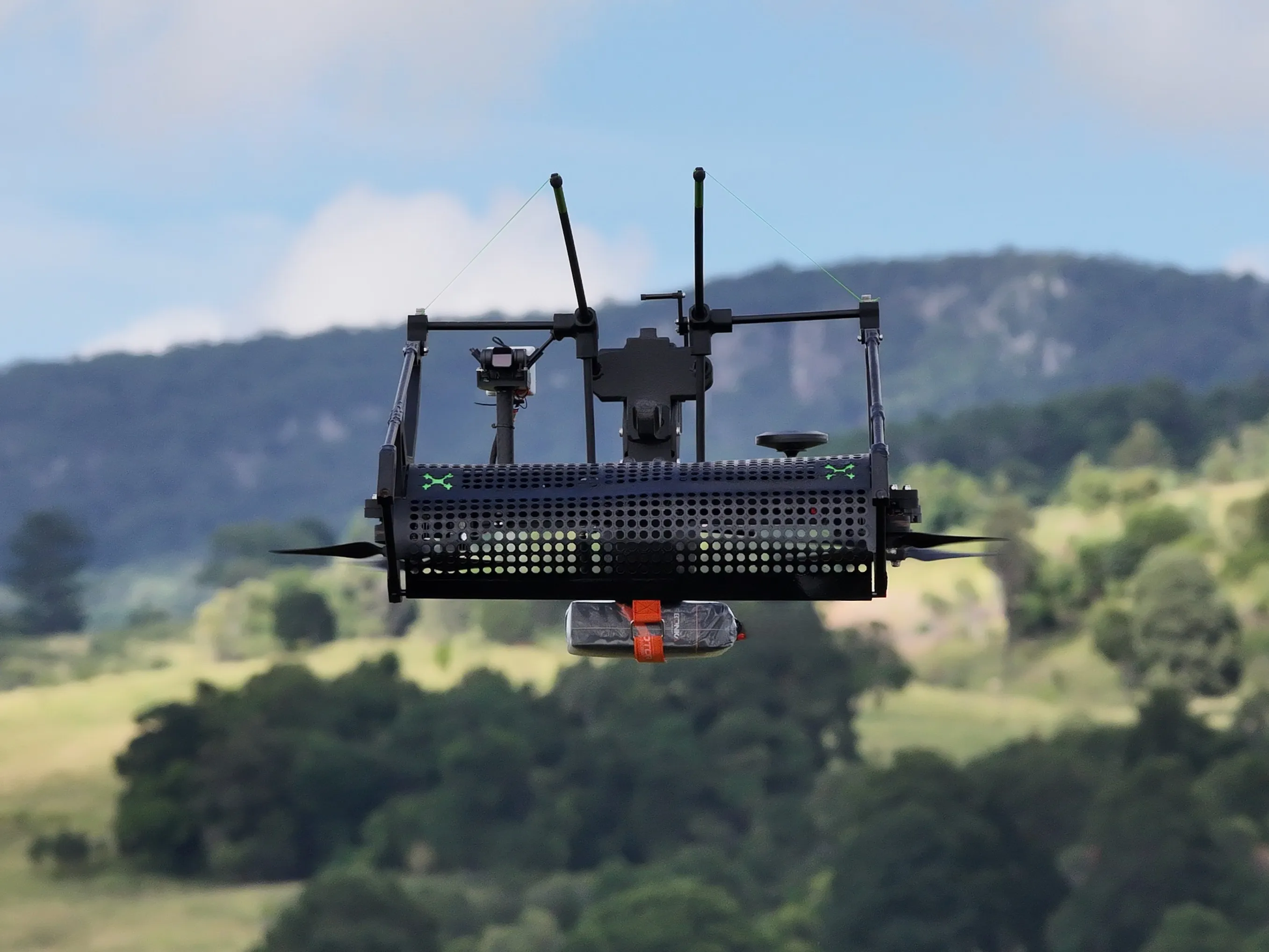

AeroClip S head-on in the hover
AeroClip S flying below an escarpment
RTA-11 airframe in flight over water, no payload fitted

Buy AeroClip. Or have it engineered further.

Complete system, RTA-11 airframe only, or a payload built to your brief. Or have us do the installing: powerline marker installation.

Request a quote
